Visual Notes
SolidStartTypeScriptPrismaPostgreSQLOpenAIData Visualization
Visual Notes is an app for ingesting markdown documents, storing them as structured records, and exploring them visually. The project started with a minimal markdown ingest flow and grew into an embeddings and UMAP-backed canvas for arranging notes by semantic similarity.
- Source: byronwall/visual-notes

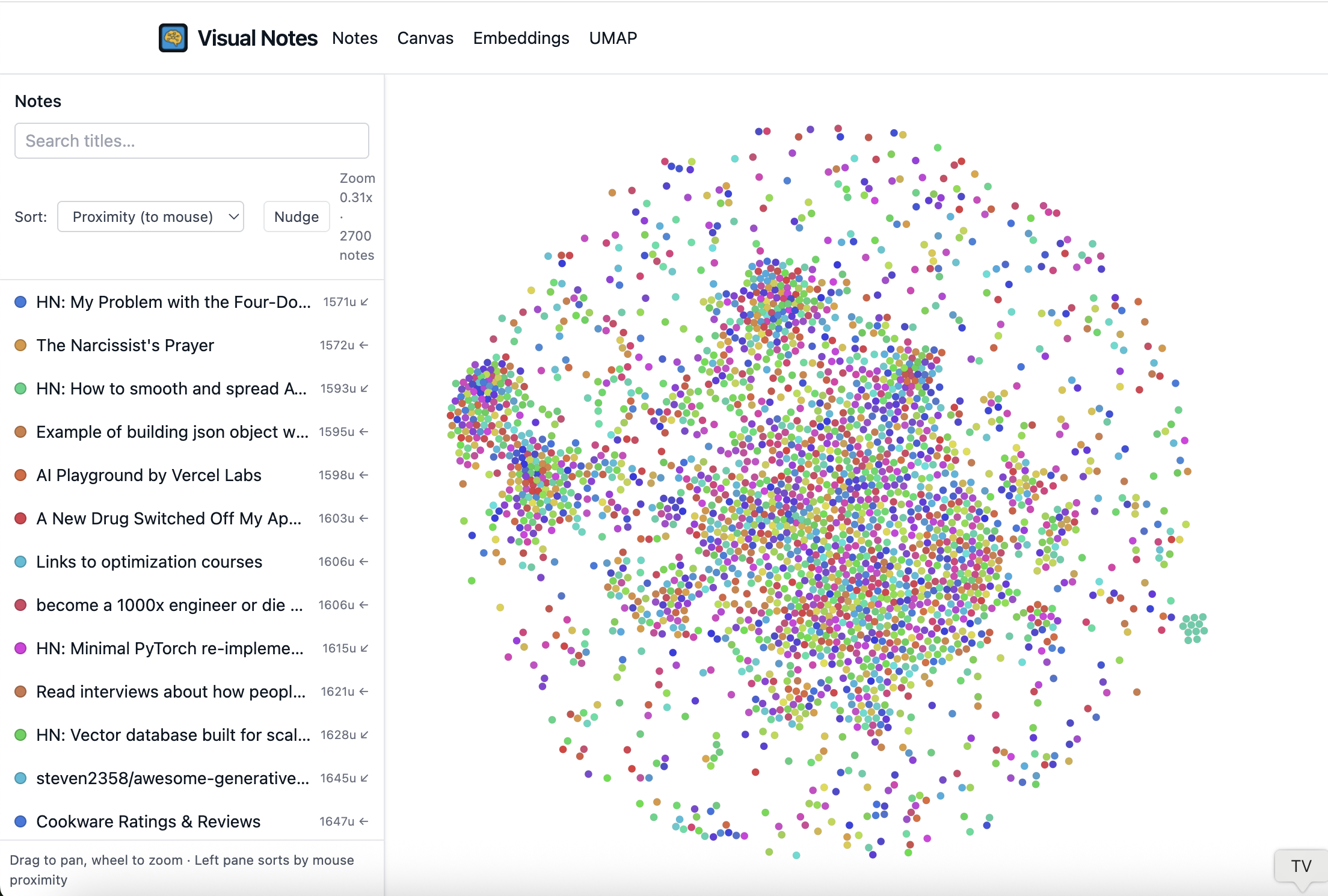

Interface
How it works
Visual Notes treats markdown as source material for a searchable and visual note workspace:
- Ingests markdown through API routes or the client form.
- Converts markdown to normalized HTML for document viewing.
- Persists documents with Prisma and PostgreSQL.
- Computes OpenAI embeddings for stored documents.
- Trains UMAP projections and stores 2D or 3D point layouts.
- Uses the latest UMAP run to position notes on the visual canvas.
Highlights
- Minimal end-to-end markdown ingest and viewer flow
- Embedding runs with model and dimension metadata
- UMAP train and project workflows with persisted artifacts
- Canvas visualization backed by semantic note positions
- Docker Compose setup for Postgres and the app
